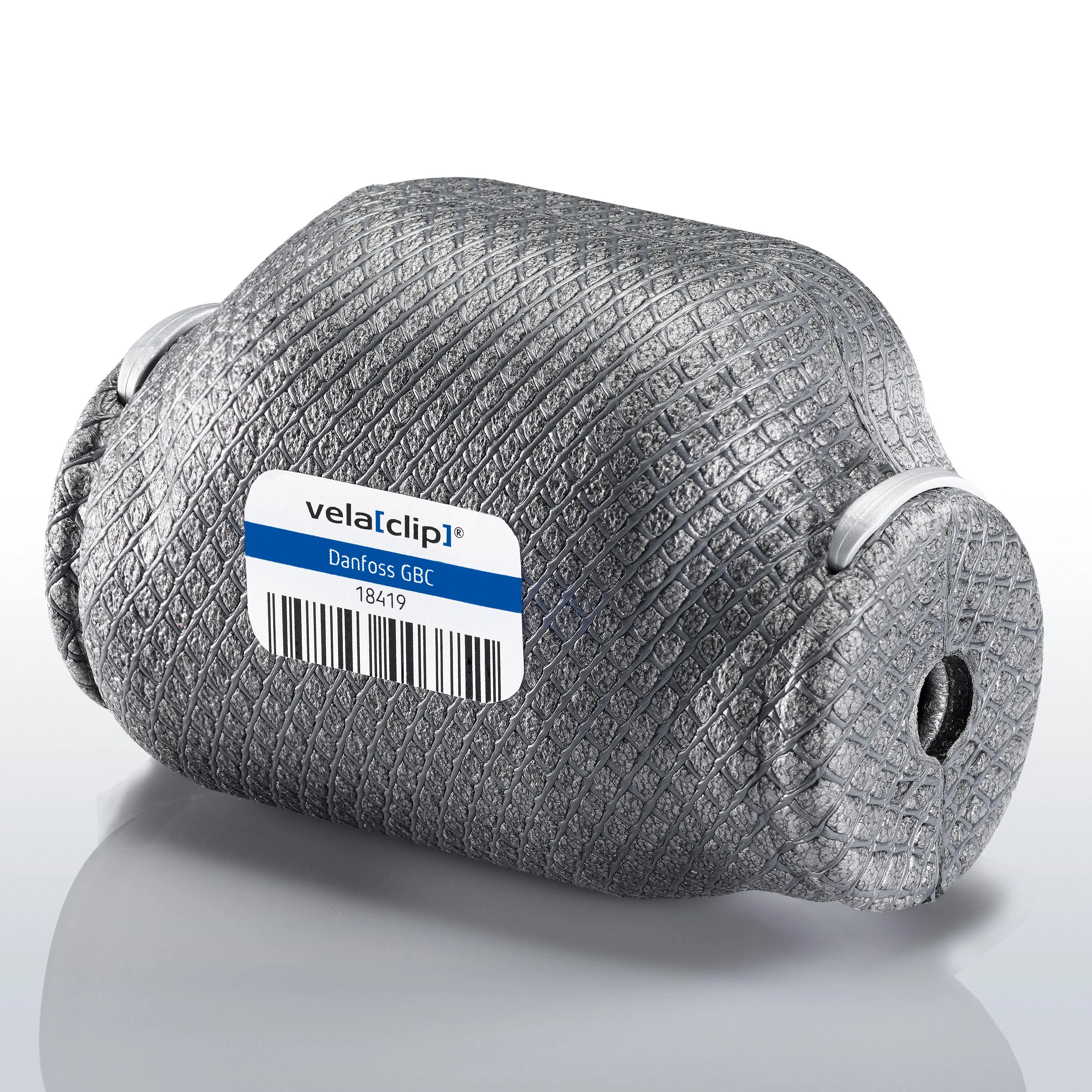

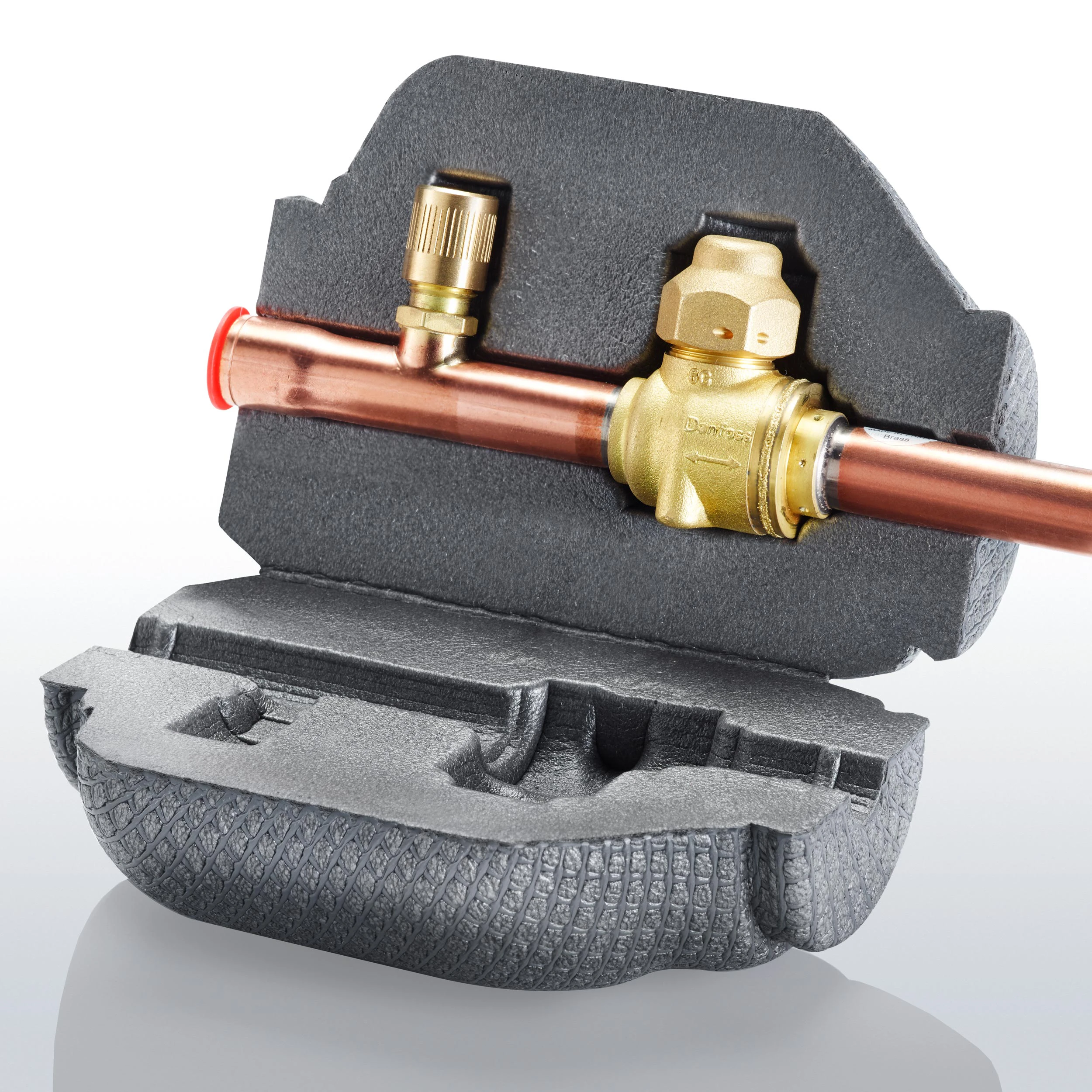

vela[clip] for Danfoss GBC ball shut-off valves is the custom-fit and professional insulation solution for preventing condensation in refrigeration installations. vela[clip] effectively prevents cold bridges and air draughts. The risk of corrosion under the insulation layer is reduced. vela[clip] combines low thermal conductivity with high resistance to water vapor diffusion. The diffusion-tight insulation contributes to the permanent prevention of energy losses and prevents the penetration of water vapor.
* The suitability of the product for the desired purpose and compliance with the quality values under operating conditions cannot be derived from the quality values; both must be checked independently.
| Designation | Dimension | Order number | Insulation thickness (mm) | PU |
|---|---|---|---|---|
| vela[clip] for Danfoss | GBC 6s/10s | 18419 | 19 | 15 |
| vela[clip] for Danfoss | GBC 12s | 18420 | 19 | 15 |
| vela[clip] for Danfoss | GBCH/R744 6s/10s | 18421 | 19 | 15 |
| vela[clip] for Danfoss | GBC 16s – GBCH/R744 12s/16s | 18422 | 19 | 15 |
| vela[clip] for Danfoss | GBC 18s – R744 18s | 18423 | 19 | 15 |
| vela[clip] for Danfoss | GBC 22s – GBCH 18s – R744 22s | 18424 | 19 | 15 |
| vela[clip] for Danfoss | GBC 28s – GBCH 28s – R744 28s | 18425 | 19 | 15 |
| vela[clip] for Danfoss | GBC 35s – GBCH 35s – R744 35s | 18426 | 19 | 15 |
