VELA[CLIP] FOR PARKER SPORLAN EBV(T)-PR BALL VALVES

PE insulation shell for Parker Sporlan EBV(T)-PR ball valves 10-16mm (3/8“ to 5/8”)

PE insulation shell for Parker Sporlan EBV(T)-PR ball valves 10-16mm (3/8“ to 5/8”)

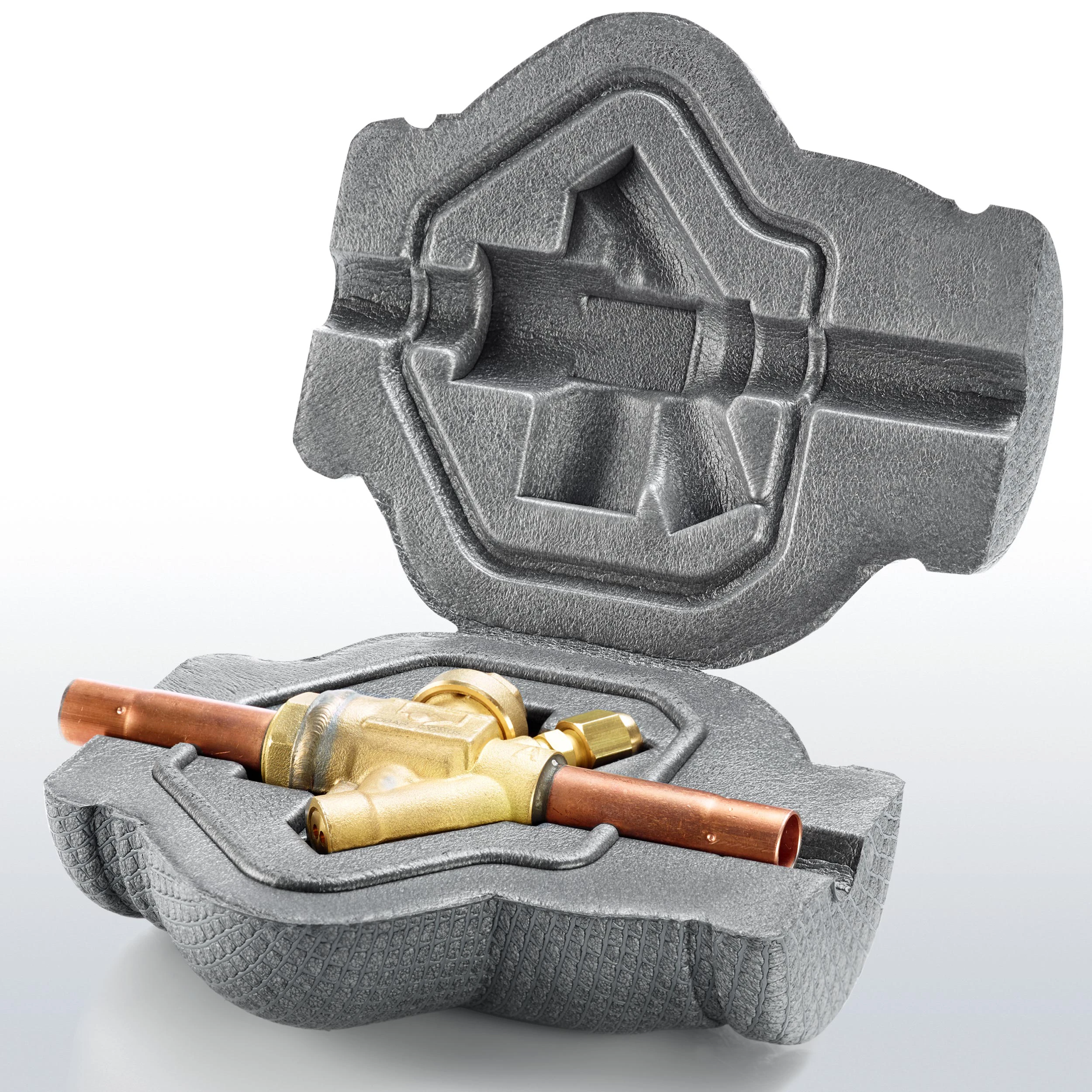

Valve insulation for Parker-Sporlan EBV(T)-PR ball valves

Product description

vela[clip] for Parker Sporlan EBV(T)-PR ball valves is the custom-fit and professional insulation solution for preventing condensation in refrigeration installations. vela[clip] effectively prevents cold bridges and air draughts. The risk of corrosion under the insulation layer is reduced. vela[clip] combines low thermal conductivity with high resistance to water vapor diffusion. The diffusion-tight insulation contributes to the permanent prevention of energy losses and prevents the penetration of water vapor.



DOWNLOAD PRODUCT CATALOG REFRIGERATION (GERMAN)

Technical product data*

  • Made from cross-linked polyethylene (PE) foam
  • Scratch-resistant surface due to stable PE grid
  • Water vapor diffusion factor μ ≥ 5000
  • Fire behavior class E
  • Thermal conductivity < 0.034 / 0.040 W/mK at 10 °C / 40 °C
  • Can be used in the temperature range from -80 °C to +100 °C

* The suitability of the product for the desired purpose and compliance with the quality values under operating conditions cannot be derived from the quality values; both must be checked independently.

Available dimensions

Designation Dimension Order number Insulation thickness (mm) PU
vela[clip] for Parker Sporlan EBV(T)-PR ball valves 10-16mm 25349 32 15
